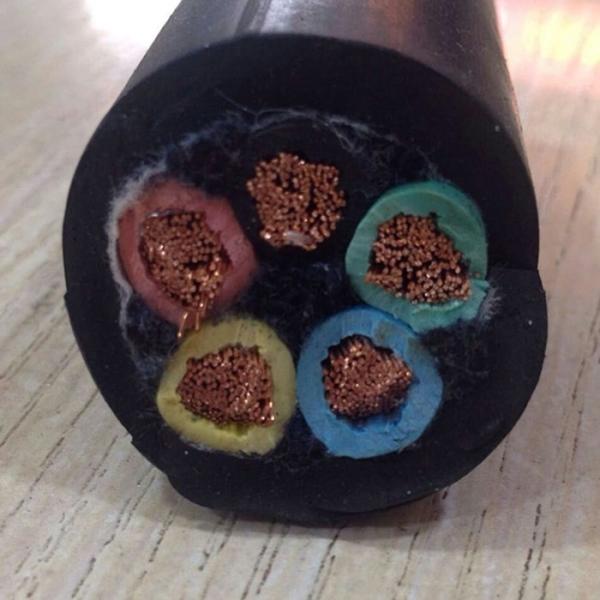

    VFD Double shield cables for steel factory In Viet Nam-ZR-BPYJVRP

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : ZR-BPYJVRP
    Certification : CE
    Price : USD0.912-USD58.212/M
    Payment Terms : T/T, Western Union
    Supply Ability : 1000km/week
    Delivery Time : 7 to 10 days after receiving payment
    • Product Details
    • Company Profile

    VFD Double shield cables for steel factory In Viet Nam-ZR-BPYJVRP

    Application:

    The cable is used as power supply cables or electrical connection of inverter control system at AC rated voltage 0.6/1KV or less

    Working Condition:

    1.AC rated voltage Uo/U:0.6/1KV

    2.Max working temperature PVC insulation is 70ºC,XLPE insulation is 90ºC

    3.Min. enviroment temperature XLPE sheathed cable shall be not less than -70ºC ,PVC sheath cable shall be not less than -25ºC

    4.Enviroment temperature shall be not less than 0ºC for cable in-stallation.

    5.Min.bending radius for installation shall be 15 times outer diameter of cable.



    Type and Name:

    Typename
    BPVVPPVC insulated and sheathed copper wire braided shield frequency converter power cable
    BPVVP2PVC insulated and sheathed copper tape wrapped shielding frequency converter power cable
    BPVVPP2

    PVC insulated and sheathed copper wire braided copper tape wrapped shield
    frequency converter power cable

    BPVVP3

    PVC insulated and sheathed aluminum polyester composite film wrapped and shielded
    frequency converter power cable

    BPYJVPXLPE insulated PVC sheathed copper wire braided shield frequency changer power cable
    BPYJVP2XLPE insulated PVC sheathed copper tape wrapped shield frequency changer power cable
    BPYJVPP2

    XLPE insulated PVC sheathed copper wire braided copper tape wrapped shield
    frequency changer power cable

    BPYJVP3

    XLPE insulated PVC sheathed aluminum polyester composite film wrapped and shielded
    frequency changer power cable

    Note: Prefix ZR is added to the flame retardant type cable's code


    Technical Requirement:
    1.Conductor DC resitance of cable should comply with the requirement of GB/T3956-2008
    2.Insulation resistance constant(20ºC,min):PVC insulation:36.7MΩ/KM
    3.Cable should withstand AC voltage testing of 50HZ,3.5KV/5min,no breakdown


    Technical Requirement:
    1.Conductor DC resitance of cable should comply with the requirement of GB/T3956-2008
    2.Insulation resistance constant(20ºC,min):PVC insulation:36.7MΩ/KM
    3.Cable should withstand AC voltage testing of 50HZ,3.5KV/5min,no breakdown



    Technical Requirement:
    1.Conductor DC resitance of cable should comply with the requirement of GB/T3956-2008
    2.Insulation resistance constant(20ºC,min):PVC insulation:36.7MΩ/KM
    3.Cable should withstand AC voltage testing of 50HZ,3.5KV/5min,no breakdown
