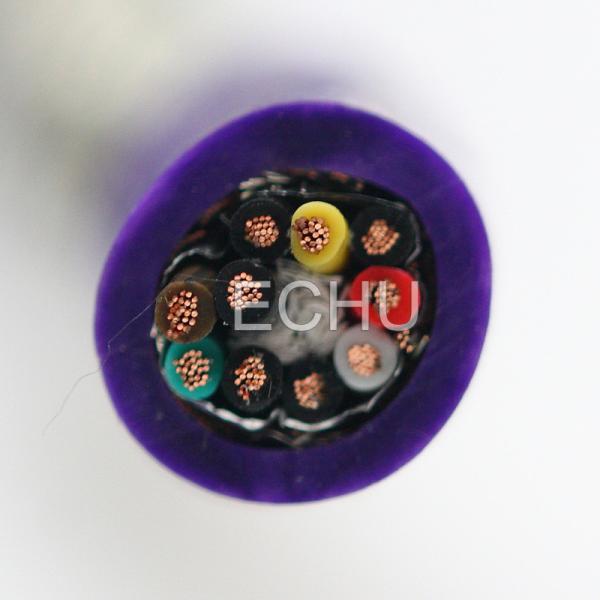

PUR Jacket Control Cable flexible Cable ECHU Special Cable

    Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers

    Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers
    • Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers
    • Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers
    • Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers
    • Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers
    • Buy cheap PUR Jacket Control Cable flexible Cable ECHU Special Cable from wholesalers

    PUR Jacket Control Cable flexible Cable ECHU Special Cable

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : EKM71900, EKM71973, EKM71983
    Certification : CE
    Price : USD0.821-USD3.528/M
    Payment Terms : Western Union,T/T
    Supply Ability : above 1,000,000M per week
    Delivery Time : within 10 days after receiving payment
    • Product Details
    • Company Profile

    PUR Jacket Control Cable flexible Cable ECHU Special Cable

    Super Flexible Power Chain Cable with Long Bending Life, Robot Cable
    (EKM71100, EKM71573, EKM71900)
    Application:
    It is suitable for dry or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyer system, crane and other related equipments.
    Properties:
    Waterproofing; Oil resistance; Cool resistance; Abrasion resistance; Flame resistance; Anti-ultraviolet.
    Bending for life: Above 5, 000, 000 times.
    Structure:
    Conductor: Fine strands of oxygen-free copper wire,
    Acc. To VDE 0295 CLASS 6
    Insulation: Special PVC
    Sheath: Special PVC, black(RAL9005) or Grey (RAL7001)
    Related voltage: >/= 300/500V, <0.5mm: 300/300V
    Test voltage: 2500V
    Temperature range: Fixed Installation: -30 degree to + 90 degree
    Flexing Installation: -5 degree to +90 degree
    The minimum bending radius: Fixed: 5xd
    Moved: When travel<10m, bending radius of 7.5xd
    When travel>/=10m. Bending radius of 10xd

    TypeSpecificationConductor (Number/Dia)
    EKM71373O.1*2C13/0.1CU+2/0.1steel
    EKM71373O.1*3C13/0.1CU+2/0.1steel
    EKM71373O.1*4C13/0.1CU+2/0.1steel
    EKM71373O.1*5C13/0.1CU+2/0.1steel
    EKM71373O.1*6C13/0.1CU+2/0.1steel
    EKM71373O.1*7C13/0.1CU+2/0.1steel
    EKM71373O.1*8C13/0.1CU+2/0.1steel
    EKM71373O.1*9C13/0.1CU+2/0.1steel
    EKM71373O.1*1OC13/0.1CU+2/0.1steel
    EKM71373O.1*11C13/0.1CU+2/0.1steel
    EKM71373O.1*12C13/0.1CU+2/0.1steel
    EKM71373O.1*13C13/0.1CU+2/0.1steel
    EKM71373O.1*14C13/0.1CU+2/0.1steel
    EKM71373O.1*15C13/0.1CU+2/0.1steel
    EKM71373O.1*16C13/0.1CU+2/0.1steel
    EKM71373O.1*17C13/0.1CU+2/0.1steel
    EKM71373O.1*18C13/0.1CU+2/0.1steel
    EKM71373O.1*19C13/0.1CU+2/0.1steel
    EKM71373O.1*2OC13/0.1CU+2/0.1steel
    EKM71373O.1*21C13/0.1CU+2/0.1steel
    EKM71373O.1*22C13/0.1CU+2/0.1steel
    EKM71373O.1*23C13/0.1CU+2/0.1steel
    EKM71373O.1*24C13/0.1CU+2/0.1steel
    EKM71373O.1*25C13/0.1CU+2/0.1steel
    EKM71373O.1*26C13/0.1CU+2/0.1steel
    EKM71373O.1*27C13/0.1CU+2/0.1steel
    EKM71373O.1*28C13/0.1CU+2/0.1steel
    EKM71373O.1*29C13/0.1CU+2/0.1steel
    EKM71373O.1*3OC13/0.1CU+2/0.1steel

    EKM71373O.14*2C18/0.1CU+2/0.1steel
    EKM71373O.14*3C18/0.1CU+2/0.1steel
    EKM71373O.14*4C18/0.1CU+2/0.1steel
    EKM71373O.14*5C18/0.1CU+2/0.1steel
    EKM71373O.14*6C18/0.1CU+2/0.1steel
    EKM71373O.14*7C18/0.1CU+2/0.1steel
    EKM71373O.14*8C18/0.1CU+2/0.1steel
    EKM71373O.14*9C18/0.1CU+2/0.1steel
    EKM71373O.14*1OC18/0.1CU+2/0.1steel
    EKM71373O.14*11C18/0.1CU+2/0.1steel
    EKM71373O.14*12C18/0.1CU+2/0.1steel
    EKM71373O.14*13C18/0.1CU+2/0.1steel
    EKM71373O.14*14C18/0.1CU+2/0.1steel
    EKM71373O.14*15C18/0.1CU+2/0.1steel
    EKM71373O.14*16C18/0.1CU+2/0.1steel
    EKM71373O.14*17C18/0.1CU+2/0.1steel
    EKM71373O.14*18C18/0.1CU+2/0.1steel
    EKM71373O.14*19C18/0.1CU+2/0.1steel
    EKM71373O.14*2OC18/0.1CU+2/0.1steel
    EKM71373O.14*21C18/0.1CU+2/0.1steel
    EKM71373O.14*22C18/0.1CU+2/0.1steel
    EKM71373O.14*23C18/0.1CU+2/0.1steel
    EKM71373O.14*24C18/0.1CU+2/0.1steel
    EKM71373O.14*25C18/0.1CU+2/0.1steel
    EKM71373O.14*26C18/0.1CU+2/0.1steel
    EKM71373O.14*27C18/0.1CU+2/0.1steel
    EKM71373O.14*28C18/0.1CU+2/0.1steel
    EKM71373O.14*29C18/0.1CU+2/0.1steel
    EKM71373O.14*3OC18/0.1CU+2/0.1steel
