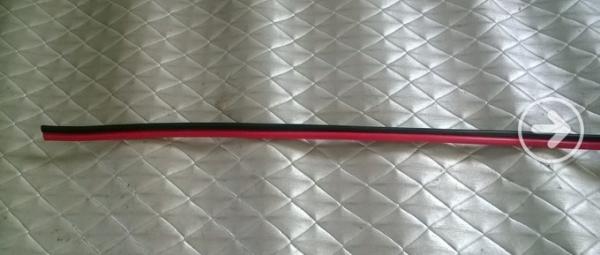

    RVB Electrical Cable PVC insulation Cable Copper Wire Cable

    Ask Lasest Price
    Brand Name : ECHU
    Certification : CCC
    Model Number : RVB
    Price : USD0.107-USD0.68/M
    Delivery Time : 7 days after receiving payment
    Payment Terms : T/T, Western Union
    Supply Ability : 100000km/week
    • Product Details
    • Company Profile

    RVB Electrical Cable PVC insulation Cable Copper Wire Cable

    UL Approval, CCC Approval, CE Approval

    Type: UL1015, UL1007, RV, BV, BVR, H05V-K/U/R, H07V-K/U/R
    Description:
    Related temperature: 105 degree
    Rated voltage: 300V
    Reference standard:
    UL subject 758 & UL1581/CSA C22.2 No. 210.05
    Tinned or bare, stranded or solid copper conductor
    Insulation: PVC
    Uniform insulation thickness to ensure easy stripping and cutting
    Passed UL VW-1 flame test

    Application:
    For internal wiring of electronic and electrical equipment
    Can be substituted by UL3386


    TypeSpecification AWGBare CopperTinned copperInsulation Thickness mmAppromix Weight KG/KMInsluation O.D. mmcross section (mm2)
    Conductor No.Conductor DiaConductor No.Conductor DiaDown Up
    UL10152670.1670.160.767.12.02.20.14
    UL101524110.16110.160.768.32.12.30.22
    UL101522170.16170.160.7610.02.32.50.34
    UL101520260.16260.160.7612.42.52.70.52
    UL101518410.16410.160.7616.22.72.90.82
    UL101517510.16510.160.7619.02.83.01.03
    UL101516260.254270.250.7622.63.03.21.32
    UL101515330.254340.250.7625.93.23.41.67
    UL101514410.254430.250.7631.53.43.62.0775
    UL101513520.254540.250.7636.53.63.82.63
    UL101512650.254670.250.7645.53.94.13.29
    UL101511820.254850.250.7652.64.34.54.16
    UL1015101040.2541070.250.7667.14.85.05.27
    UL10159940.30940.300.7689.05.35.56.64
    UL101581180.301180.301.15107.56.56.78.34
    UL101571470.301470.301.15140.37.07.210.39
    UL101561890.301890.301.52172.68.48.613.36
    UL101552380.302380.301.52207.69.19.316.82
    UL101542990.302990.301.52267.99.810.021.14
    UL101533780.303780.301.52325.610.711.126.72
    UL101524750.304750.301.52382.511.712.133.58
    UL101516000.306000.302.03495.913.814.242.41
    UL10151/02510.522720.502.03615.314.514.953.31
    UL10152/03170.523430.502.03750.015.816.467.32
    UL10153/04000.524330.502.03923.017.217.884.95
    UL10154/05050.525460.502.031134.318.919.5107.25
    UL10152505980.526470.502.411366.520.921.9127.00
    UL10153007160.527740.502.411609.322.523.5152.06
    UL10153508330.529010.502.411852.723.924.9176.91
    UL10154009550.5210330.502.412104.325.326.3202.82
    UL101545010730.5211610.502.412344.726.527.5227.88
    UL101550011910.5212880.502.412584.827.728.7252.94
    UL101555013130.5214200.502.792898.629.630.6278.84
