    Special bending Cable for Drag Chain, flexible Traveling Cable

    Ask Lasest Price
    Brand Name : ECHU
    Certification : CE,CCC
    Model Number : EKM71100, EKM71373
    Price : USD0.505-USD10.336/m
    Delivery Time : within 10 days after receiving payment
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : above 1,000,000M per week
    • Product Details
    • Company Profile

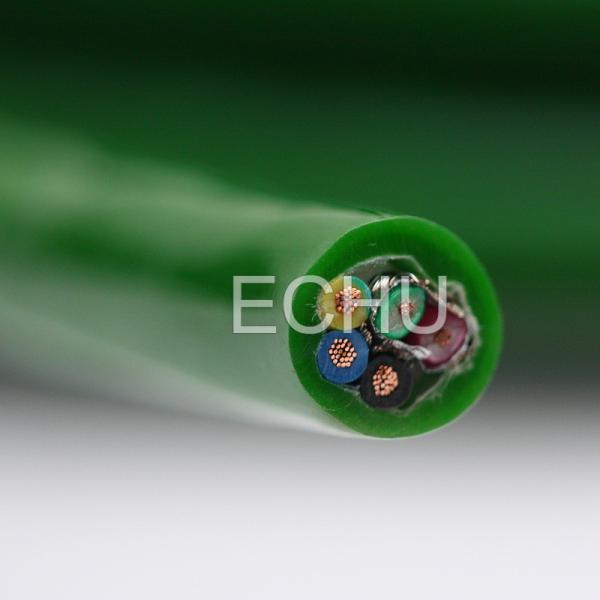

    Special bending Cable for Drag Chain, flexible Traveling Cable

    Super Flexible Power Chain Cable with Long Bending Life, Robot Cable
    (EKM71100, EKM71573, EKM71900)
    Application:
    It is suitable for dry or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyer system, crane and other related equipments.

    Properties:
    Waterproofing; Oil resistance; Cool resistance; Abrasion resistance; Flame resistance; Anti-ultraviolet.
    Bending for life: Above 5, 000, 000 times.

    Structure:
    Conductor: Fine strands of oxygen-free copper wire,
    Acc. To VDE 0295 CLASS 6
    Insulation: Special PVC
    Sheath: Special PVC, black(RAL9005) or Grey (RAL7001)
    Related voltage: >/= 300/500V, <0.5mm: 300/300V
    Test voltage: 2500V
    Temperature range: Fixed Installation: -30 degree to + 90 degree
    Flexing Installation: -5 degree to +90 degree
    The minimum bending radius: Fixed: 5xd
    Moved: When travel<10m, bending radius of 7.5xd
    When travel>/=10m. Bending radius of 10xd


    TypeSpecificationConductor Number & Dia
    EKM71100O.1*2C13/0.1CU+2/0.1steel
    EKM71100O.1*3C13/0.1CU+2/0.1steel
    EKM71100O.1*4C13/0.1CU+2/0.1steel
    EKM71100O.1*5C13/0.1CU+2/0.1steel
    EKM71100O.1*6C13/0.1CU+2/0.1steel
    EKM71100O.1*7C13/0.1CU+2/0.1steel
    EKM71100O.1*8C13/0.1CU+2/0.1steel
    EKM71100O.1*9C13/0.1CU+2/0.1steel
    EKM71100O.1*1OC13/0.1CU+2/0.1steel
    EKM71100O.1*11C13/0.1CU+2/0.1steel
    EKM71100O.1*12C13/0.1CU+2/0.1steel
    EKM71100O.1*13C13/0.1CU+2/0.1steel
    EKM71100O.1*14C13/0.1CU+2/0.1steel
    EKM71100O.1*15C13/0.1CU+2/0.1steel
    EKM71100O.1*16C13/0.1CU+2/0.1steel
    EKM71100O.1*17C13/0.1CU+2/0.1steel
    EKM71100O.1*18C13/0.1CU+2/0.1steel
    EKM71100O.1*19C13/0.1CU+2/0.1steel
    EKM71100O.1*2OC13/0.1CU+2/0.1steel
    EKM71100O.1*21C13/0.1CU+2/0.1steel
    EKM71100O.1*22C13/0.1CU+2/0.1steel
    EKM71100O.1*23C13/0.1CU+2/0.1steel
    EKM71100O.1*24C13/0.1CU+2/0.1steel
    EKM71100O.1*25C13/0.1CU+2/0.1steel
    EKM71100O.1*26C13/0.1CU+2/0.1steel
    EKM71100O.1*27C13/0.1CU+2/0.1steel
    EKM71100O.1*28C13/0.1CU+2/0.1steel
    EKM71100O.1*29C13/0.1CU+2/0.1steel
    EKM71100O.1*3OC13/0.1CU+2/0.1steel
    EKM711000.14*2C18/0.1CU+2/0.1steel
    EKM711000.14*3C18/0.1CU+2/0.1steel
    EKM711000.14*4C18/0.1CU+2/0.1steel
    EKM711000.14*5C18/0.1CU+2/0.1steel
    EKM711000.14*6C18/0.1CU+2/0.1steel
    EKM711000.14*7C18/0.1CU+2/0.1steel
    EKM711000.14*8C18/0.1CU+2/0.1steel
    EKM711000.14*9C18/0.1CU+2/0.1steel
    EKM711000.14*1OC18/0.1CU+2/0.1steel
    EKM711000.14*11C18/0.1CU+2/0.1steel
    EKM711000.14*12C18/0.1CU+2/0.1steel
    EKM711000.14*13C18/0.1CU+2/0.1steel
    EKM711000.14*14C18/0.1CU+2/0.1steel
    EKM711000.14*15C18/0.1CU+2/0.1steel
    EKM711000.14*16C18/0.1CU+2/0.1steel
    EKM711000.14*17C18/0.1CU+2/0.1steel
    EKM711000.14*18C18/0.1CU+2/0.1steel
    EKM711000.14*19C18/0.1CU+2/0.1steel
    EKM711000.14*2OC18/0.1CU+2/0.1steel
    EKM711000.14*21C18/0.1CU+2/0.1steel
    EKM711000.14*22C18/0.1CU+2/0.1steel
    EKM711000.14*23C18/0.1CU+2/0.1steel
    EKM711000.14*24C18/0.1CU+2/0.1steel
    EKM711000.14*25C18/0.1CU+2/0.1steel
    EKM711000.14*26C18/0.1CU+2/0.1steel
    EKM711000.14*27C18/0.1CU+2/0.1steel
    EKM711000.14*28C18/0.1CU+2/0.1steel
    EKM711000.14*29C18/0.1CU+2/0.1steel
    EKM711000.14*3OC18/0.1CU+2/0.1steel
    EKM71100O.2*2C25/0.1CU+2/0.1steel
    EKM71100O.2*3C25/0.1CU+2/0.1steel
    EKM71100O.2*4C25/0.1CU+2/0.1steel
    EKM71100O.2*5C25/0.1CU+2/0.1steel
    EKM71100O.2*6C25/0.1CU+2/0.1steel
    EKM71100O.2*7C25/0.1CU+2/0.1steel
    EKM71100O.2*8C25/0.1CU+2/0.1steel
    EKM71100O.2*9C25/0.1CU+2/0.1steel
    EKM71100O.2*1OC25/0.1CU+2/0.1steel
    EKM71100O.2*11C25/0.1CU+2/0.1steel
    EKM71100O.2*12C25/0.1CU+2/0.1steel
    EKM71100O.2*13C25/0.1CU+2/0.1steel
    EKM71100O.2*14C25/0.1CU+2/0.1steel
    EKM71100O.2*15C25/0.1CU+2/0.1steel
    EKM71100O.2*16C25/0.1CU+2/0.1steel
    EKM71100O.2*17C25/0.1CU+2/0.1steel
    EKM71100O.2*18C25/0.1CU+2/0.1steel
    EKM71100O.2*19C25/0.1CU+2/0.1steel
    EKM71100O.2*2OC25/0.1CU+2/0.1steel
    EKM71100O.2*21C25/0.1CU+2/0.1steel
    EKM71100O.2*22C25/0.1CU+2/0.1steel
    EKM71100O.2*23C25/0.1CU+2/0.1steel
    EKM71100O.2*24C25/0.1CU+2/0.1steel
    EKM71100O.2*25C25/0.1CU+2/0.1steel
    EKM71100O.2*26C25/0.1CU+2/0.1steel
    EKM71100O.2*27C25/0.1CU+2/0.1steel
    EKM71100O.2*28C25/0.1CU+2/0.1steel
    EKM71100O.2*29C25/0.1CU+2/0.1steel
    EKM71100O.2*3OC25/0.1CU+2/0.1steel
    EKM71100O.25*2C320.1
    EKM71100O.25*3C320.1
    EKM71100O.25*4C320.1
    EKM71100O.25*5C320.1
    EKM71100O.25*6C320.1
    EKM71100O.25*7C320.1
    EKM71100O.25*8C320.1
    EKM71100O.25*9C320.1
    EKM71100O.25*1OC320.1
    EKM71100O.25*11C320.1
    EKM71100O.25*12C320.1
    EKM71100O.25*13C320.1
    EKM71100O.25*14C320.1
    EKM71100O.25*15C320.1
    EKM71100O.25*16C320.1
    EKM71100O.25*17C320.1
    EKM71100O.25*18C320.1
    EKM71100O.25*19C320.1
    EKM71100O.25*2OC320.1
    EKM71100O.25*21C320.1
    EKM71100O.25*22C320.1
    EKM71100O.25*23C320.1
    EKM71100O.25*24C320.1
    EKM71100O.25*25C320.1
    EKM71100O.25*26C320.1
    EKM71100O.25*27C320.1
    EKM71100O.25*28C320.1
    EKM71100O.25*29C320.1
    EKM71100O.25*3OC320.1
    EKM71100O.3*2C380.1
    EKM71100O.3*3C380.1
    EKM71100O.3*4C380.1
    EKM71100O.3*5C380.1
    EKM71100O.3*6C380.1
    EKM71100O.3*7C380.1
    EKM71100O.3*8C380.1
    EKM71100O.3*9C380.1
    EKM71100O.3*1OC380.1
    EKM71100O.3*11C380.1
    EKM71100O.3*12C380.1
    EKM71100O.3*13C380.1
    EKM71100O.3*14C380.1
    EKM71100O.3*15C380.1
    EKM71100O.3*16C380.1
    EKM71100O.3*17C380.1
    EKM71100O.3*18C380.1
    EKM71100O.3*19C380.1
    EKM71100O.3*2OC380.1
    EKM71100O.3*21C380.1
    EKM71100O.3*22C380.1
    EKM71100O.3*23C380.1
    EKM71100O.3*24C380.1
    EKM71100O.3*25C380.1
    EKM71100O.3*26C380.1
    EKM71100O.3*27C380.1
    EKM71100O.3*28C380.1
    EKM71100O.3*29C380.1
    EKM71100O.3*3OC380.1
