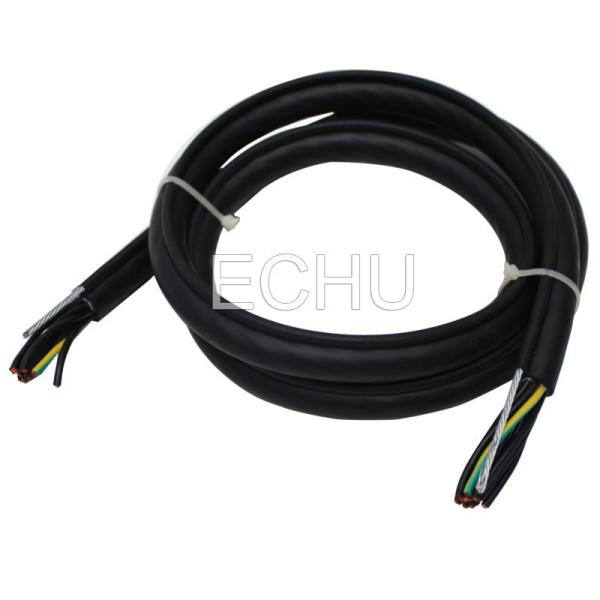

1S LIFT CABLE,

Applications:

It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continous installation or fixation, but can not work as elevator cables. Just insulated cable rope among cores functions as tensile resistance, There is non-woven fabric to release impact between cores and sheath.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steelswhose broken pulling force reaches 104.KN and the height 150m.

For the adoption of modified PVC sheath, the product has an excellent properties and safety service.

Structure:

Conductor: Fine strands of oxygen-free copper wire.

acc. to VDE0295, class5

Color: varous colour cores with number acc. to JISC3306

black with white number and green/yellow acc. to IEC227

Inner liner: non-woven fabric wrapping to release impact

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, bkack (RAL9005)

Technical Data:

Rated voltage: ≤1.5mm 300/500v >1.5mm: 450/750v

Test voltage: ≤1.5mm 300/500v >1.5mm: 3000v

Temperature range: -15°c to +70°c

Bending radius: 20 x outer diameter
